Zoom V6 - Vokal Board - Super fed Vocoder med masser af cool effekter til din stemme. Der er bl.a. Kromatisk Pitch Correction, Oktav op/ned, Child, Deep, Unison, Robot, Whistle, Talk Box, Bass Vocoder og Vocoder. Du kan endda instille tonearten til den toneart du vil spille dit nummer i, mikrofon input, phantom power og meget mere. Lækker Vocoder V6 fra ZOOM. Tjek video'en ved billederne.

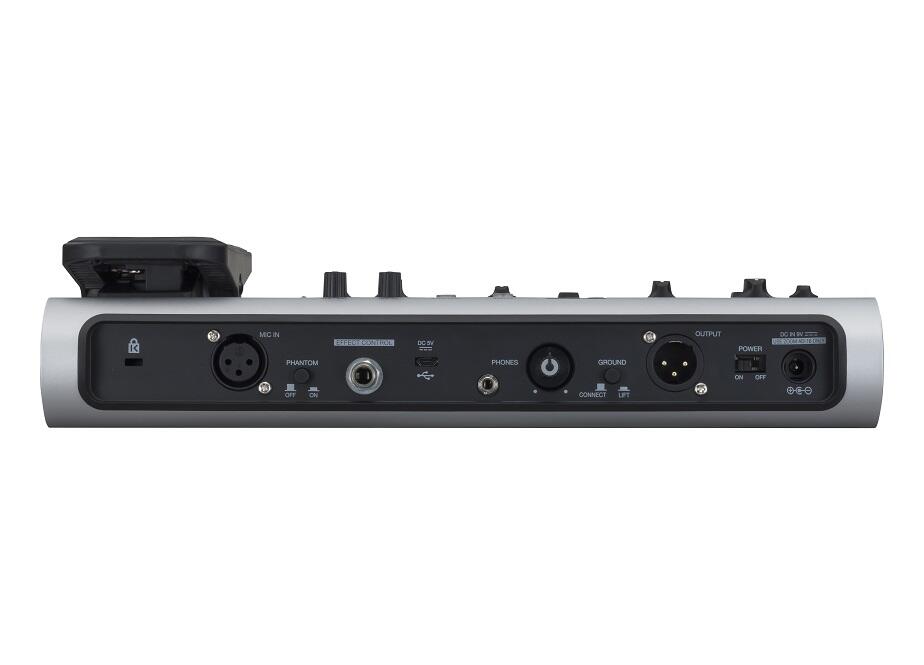

- XLR Mic Input
- Phantom Power Switch
- Control Pedal Input
- USB Output/Audio Interface
- Headphone Out/Volume Control
- XLR Output
- DC Power In
| V6 VOCAL PROCESSOR |
| Voice Section: |
12 types
|
| Effect Section: |
10 Types
|
| HARMONY section: |
5 Types
|
| Number of patch memories: |
100
|
| Sampling frequency: |
44.1 kHz
|
| A/D conversion: |
24-bit 128× oversampling
|
| D/A conversion: |
24-bit 128× oversampling
|
| Signal processing: |
32-bit
|
| Frequency response: |
20 Hz–20 kHz (+1 dB/−3 dB) (200 kΩ load)
|
| Display: |
2-digit 7-segment LED
|
| INPUT |
| SGV-6: |
Directionality: Super cardioid (3 directional mic units)
Sensitivity: –46 dB/Pa at 1 kHz (each mic unit)
Maximum sound pressure input: 140 dBSPL
|
| MIC IN: |
XLR jack
Input gain: +3 – +40 dB
Maximum input level: +4 dBu
Input impedance: 3 kΩ or higher (1 kHz)
Phantom power: +48 V
|
| OUTPUTS |
| OUTPUT: |
XLR jack
Maximum output level: +8 dBu
Output impedance: 50 Ω (HOT-GND, COLD-GND, 1 kHz)
100 Ω (HOT-COLD , 1 kHz)
GROUND LIFT (switchable)
|
| PHONES: |
Stereo mini jack
Maximum output level:
20 mW + 20 mW (into 32 Ω load)
|
| |
| Equivalent input noise (when phantom power off): |
–125 dBu or less (A-weighted, 150 Ω input, +40 dBu input gain
|
| Noise floor (residual noise): |
–75 dBu
|
| Control input: |
FP02 input
|
| Power: |
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16)
4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
|
| USB: |
Connector: Micro USB
Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
• Power can also be supplied through the USB port.
• When using a cable designed only for power, other USB functions cannot be used.
|
| External dimensions: |
181 mm (D) × 320 mm (W) × 77 mm (H)
|
| Weight: |
1.56 kg (excluding batteries)
|
