  5. Shure QLXD24-B58A
Fra: Shure

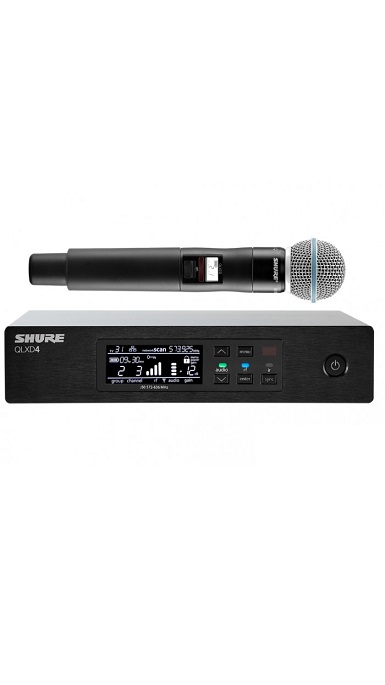

Shure QLXD24-B58A

0 anmeldelser Skriv anmeldelse
9.930,00

Shure QLXD24-B58A - Digitalt trådløst system fra Shure. Transparent 24 bit digitalt audio signal. 20 Hz - 20 kHz frenkvensområde - 120 db dynamisk rækkevidde. AES 256 bit kryptering - Ethernet netværks receiver. Network Scan der finder de ledige frekvenser i området. Klargjort til AMX / Creston kontrol. Shure Plus kanaler der er klar til en mobil app. - Wireless Workbench kontrol software. Der medfølger en SM58 Beta trådløs mikrofon med supercardioid nyre-karakteristik (B58A).

Der kan bestilles andre trådløse mikrofonkapsler:

SM58, SM86, SM87A, Beta 58A (ovenstående), Beta 87A, Beta87C og KSM9



Dette digitale trådløse system fra Shure, er et af Shure´s High-End produkter og opfylder enhver "musik-performers" drøm. Primært udviklet til professionelle musikere. Derudover har Shure også andre High-End systemer, men de er primært udviklet til konferencer, møder m.m., - og er ikke decideret beregnet til musikere.

Mere information

Model/varenr.: qlxd24/b58a

Levering, Fragt, Returret

Andre købte også
QLXD24/B58 Specifications
Set Type:
Vocal
Amount of Handhelds:
1

QLXD4 Specifications
Weight:
777 g
Height x Width x Depth:
41.0 × 197.0 × 151.0 mm
Transmission:
Digital in VHF or UHF TV Band
Type of Power Supply:
External
Receiver Housings:
Metal
Bias via BNC:
No
Encryption:
256 Bit AES
High Density Mode:
No
Interference Detection:
No
Remote Control:
Yes
Number of compatible systems info:
70
DANTE-Enabled Products:
No
Scan Features:
Channel Scan, Group Scan
Sync Features:
IR Sync
Detachable Antennas:
Yes
Network ability:
DHCP, link-local, static
Logic:
No
Cascade:
No
Rack Hardware:
Included Rack mounts brackets
Receiver Displays:
Multi-function LCD
Included antenna:
External 1/2 wave
Battery Status:
Leveled battery life indication
Line Mic Switch:
Yes
Image Rejection:
70 dB, typical
RF Sensitivity:
-97 dBm, for 12dB SINAD, typical
Phantom Power Protection:
Yes
Spurious Rejection:
80 dB, typical
Antenna Input Impedance:
50 Ω

QLXD2/B58A Specifications
Weight:
347 g
Height x Width x Depth:
256.0 × 51.0 × 51.0 mm
Transmitter weight:
470 g
Battery life lithium:
10 h
Battery life alkaline:
9 h
Form Factor:
Handheld
Operating Range (up to):
100 m (Under typical conditions)
Transmitter housings:
Metal
Audio Mute:
No
Detachable Antennas:
No
Switchable RF power:
Yes
Batteries:
AA, Shure Lithium-Ion battery
Encryption:
256 Bit AES
Charger Options:
Docking Charger
Configuration:
Unbalanced
Frequency Diversity:
No
Functionality:
Transmitter
High Density Mode:
No
Interchangeable Handheld Capsule:
Interchangeable
Transmitter displays:
Backlit LCD

QLXD4 Specifications
Further Specs:
  • Power requirements 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
  • RF Input
    • Spurious Rejection >80 dB, typical
    • Connector Type BNC
    • Impedance 50 Ω
  • Audio Output
    • Gain Adjustment Range -18 to +42 dB in 1 dB steps
    • Configuration 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    • XLR: Balanced (1=ground, 2=audio +, 3=audio −)
    • Impedance 1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω
    • Full Scale Output 1/4" (6.35 mm): +12 dBV
    • XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
    • Mic/Line Switch 30 dB pad
    • Phantom Power Protection 1/4" (6.35 mm): Yes XLR: Yes
  • Networking
    • Network Interface Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability DHCP or Manual IP address
    • Maximum Ethernet Cable Length 100 m (328 ft)

For mere information, besøg dette produkts hjemmeside.
