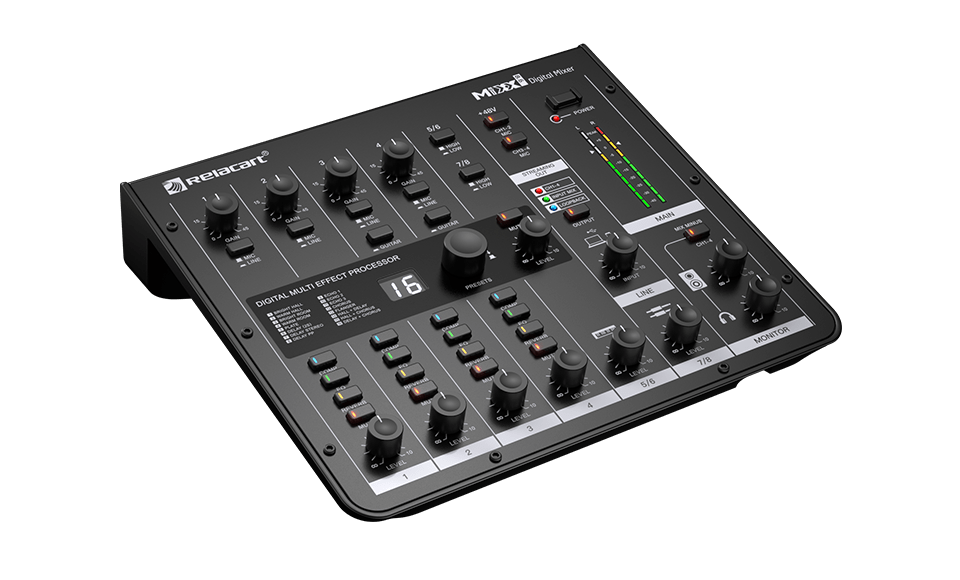

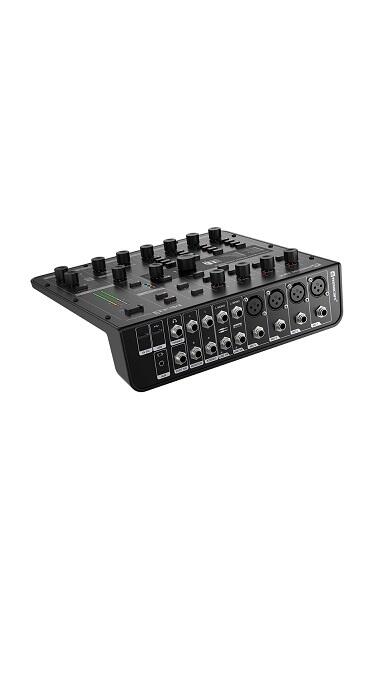

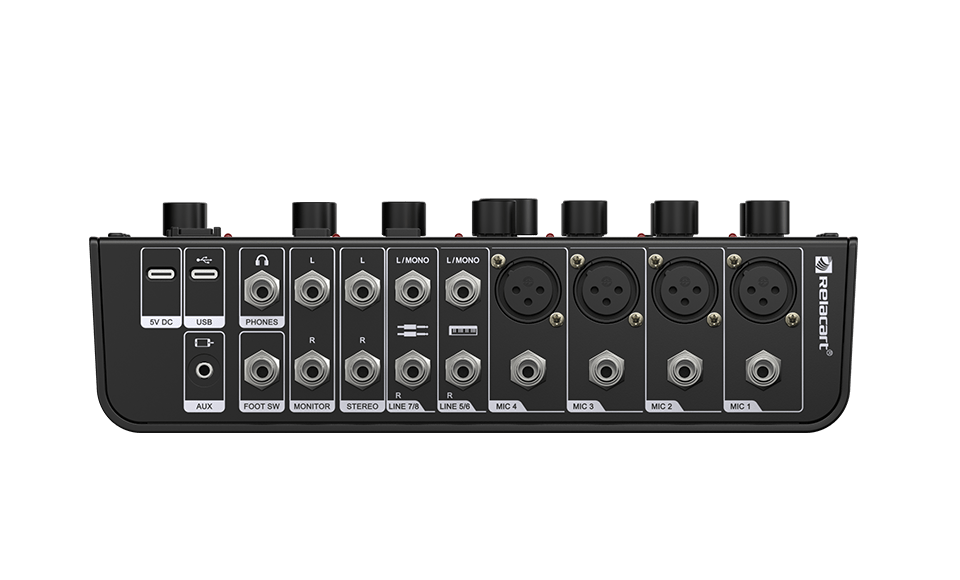

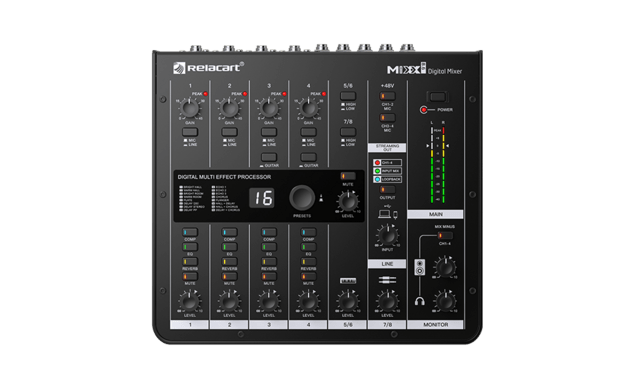

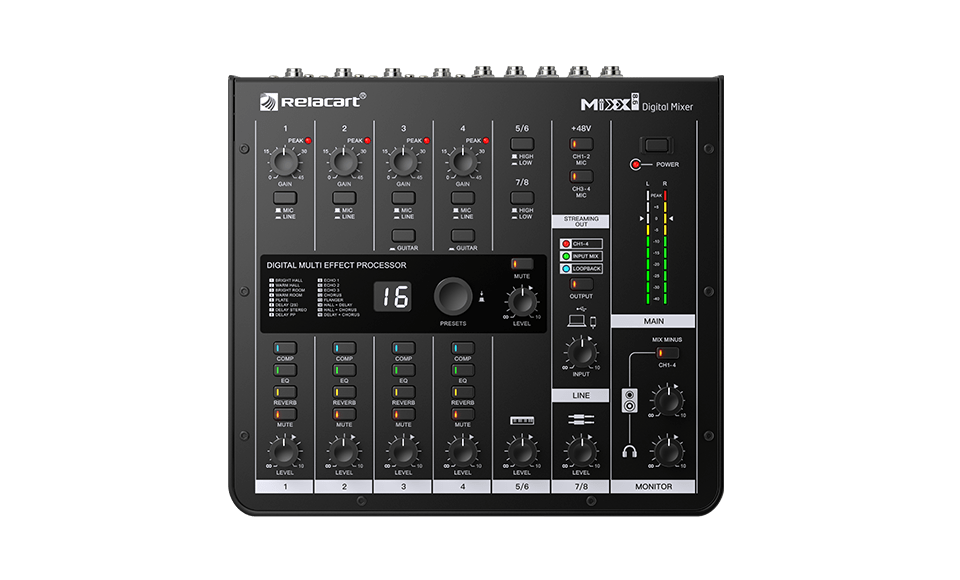

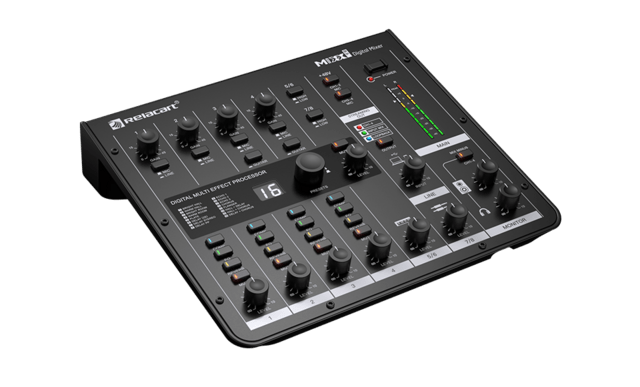

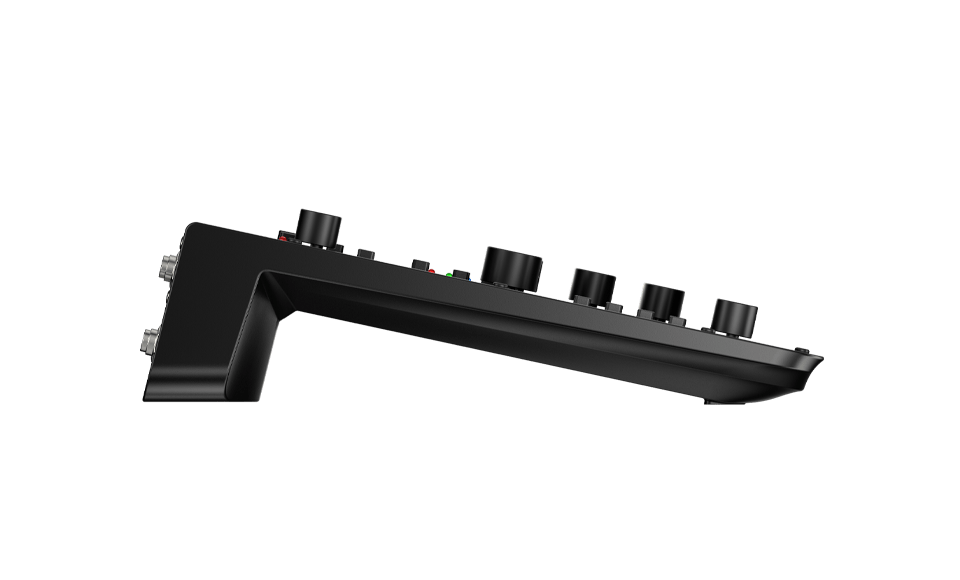

Relacart Mixx 8.6 Mixer and DSP

Name: Relacart Mixx 8.6 Mixer and DSP
Brand: Relacart
SKU: 11167

1.899,00

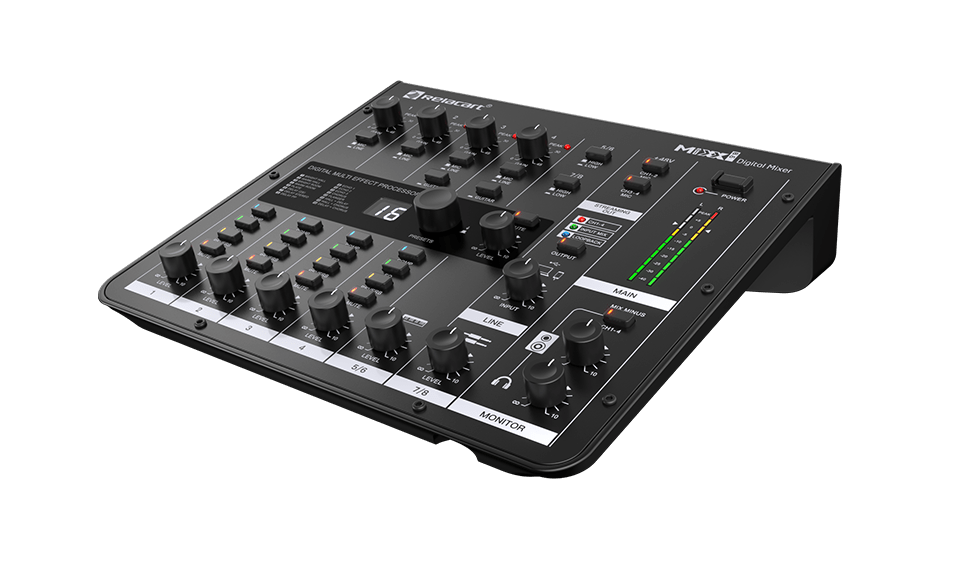

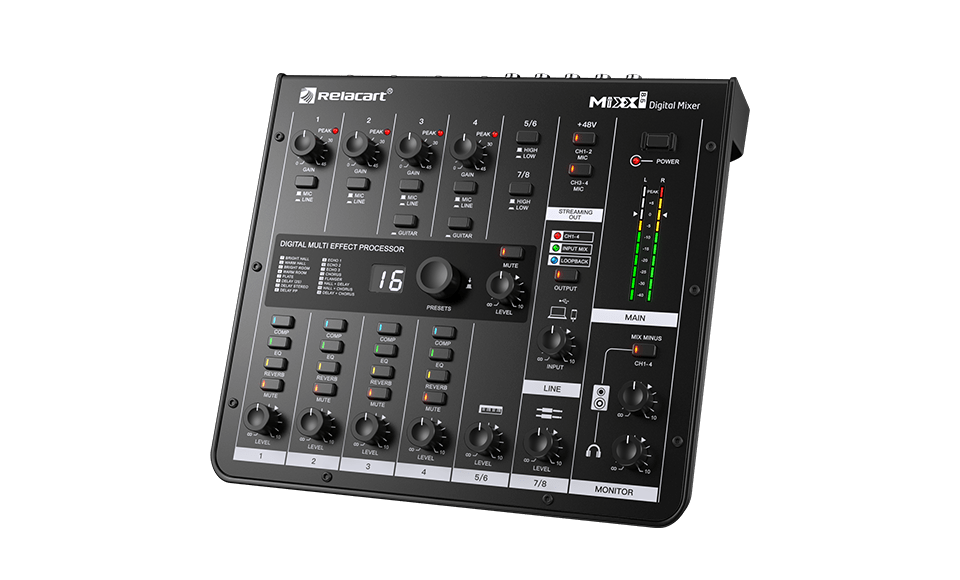

Relacart Mixx 8.6 Mixer and DSP

8-kanals digital mixer
MIXX8.6 digital mixer designet med 8 indgange og 6 udgange. Indbyggede digitale lydbehandlingsfunktioner, såsom effekt, EQ, kompressor osv. Og den er udstyret med et USB-interface, som kan overføre lyd fra mobiltelefoner og computere. Den har 16 typer af digitale rumklangseffekter, som nemt kan justeres til forskellige lejligheder med encoderen. MIXX8.6 har et enkelt og udsøgt udseende, med fornuftigt layout af funktionsknapper, velegnet til forskellige små forestillinger, konferencer, taler, KTV'er, live streaming og andre lejligheder.

Details:

Sample Rate: 24bit,48kHz

Frequency Respond: 20 Hz to 20 kHz +0/–1 dB
T.H.D. : <0.1%

Signal to Noise Ratio:90 dB Single channel max fader（A weighted）

Dynamic Range:100dB Single channel max fader（A weighted）

Common Mode Rejection Ratio：>70 dB @1 kHz

MIC Input Impedance: 3.3k Ω (XLR Balance); 1.8 kΩ（1/4″）

LINE Input Impedance: 10K Ω (1/4 ″)

Output Impedance: 150 Ω

Gain: 0 to 60 dB (XLR)

FOOT SW :REVERB ON/OFF

Phantom Power Supply:+48V

USB Audio: 2IN/2OUT compliant with USB audio class 2.0

Power Supply: DC 5V (1A)

Power Consumption: Up to 5W

Dimensions (mm):260(L)*230(H)*89(D)

Functional Features

Multifunctional Panel

·The mixer panel can turn on and off various functions, including EQ, mute, compressor, reverb, 48V phantom power, etc.

Eight Channel Input

·1-4 input channels can select MIC or LINE input source. 3 and 4 input channels can be set as instrument input sources. Channel 5-8 is stereo input,can switch H/L impedance.

48V Phantom Power Supply

·Channel 1-4 provide +48V phantom power supply , which is controlled by panel button switches.

Multiple Audio Modes

·USB output can be set in multiple audio modes to suitable for various applications.

Professional Reverb Effect

·Professional reverb function，which can simulate various sound effects.

Real-Time Monitor

·The MIX MINUS excludes the audio input of channel 1-4 from playing and monitoring locally.

Model/varenr.: Mixx 8.6

Vægt: 2 kg
