Fra: M-Audio

AIR 192|4 Vocal Studio Pro

Name: AIR 192|4 Vocal Studio Pro
Brand: M-Audio
SKU: 7762

1.695,00

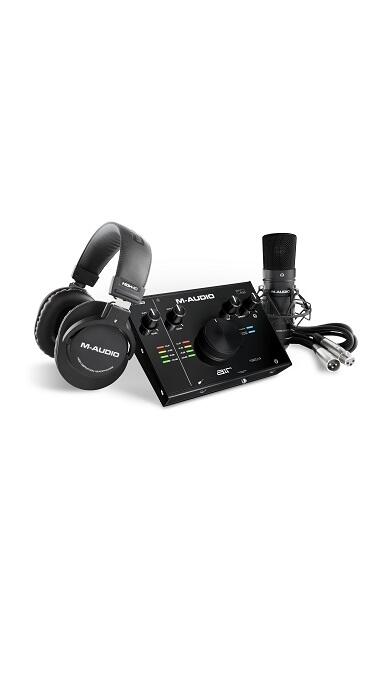

AIR 192|4 Vocal Studio Pro Lydkort - Studie indspilnings produktion - forenklet! Gå ind i en studie baseret optagelse med AIR 192 | 4 Vocal Studio Pro - den ultimative alt-i-én-løsning til computer optagelses-projekter. Det har aldrig været nemmere at indspille med kombinationen af den kritikerroste AIR 192 | 4-interface, HDH40-hovedtelefoner, en Nova Black-kondensatormikrofon, XLR-kabel og premium AIR-serien Software Suite, til indspilning af vokalspor, optagelse af elektriske og akustiske instrumenter og tilføjelse af voice-overs til multimedieprojekter. Med AIR 192 | 4 Vocal Studio Pro resulterer kombinationen, af højtydende hardware og software der er nemt at bruge, i pro-grade lydoptagelse for hvert optagelses-scenarie.

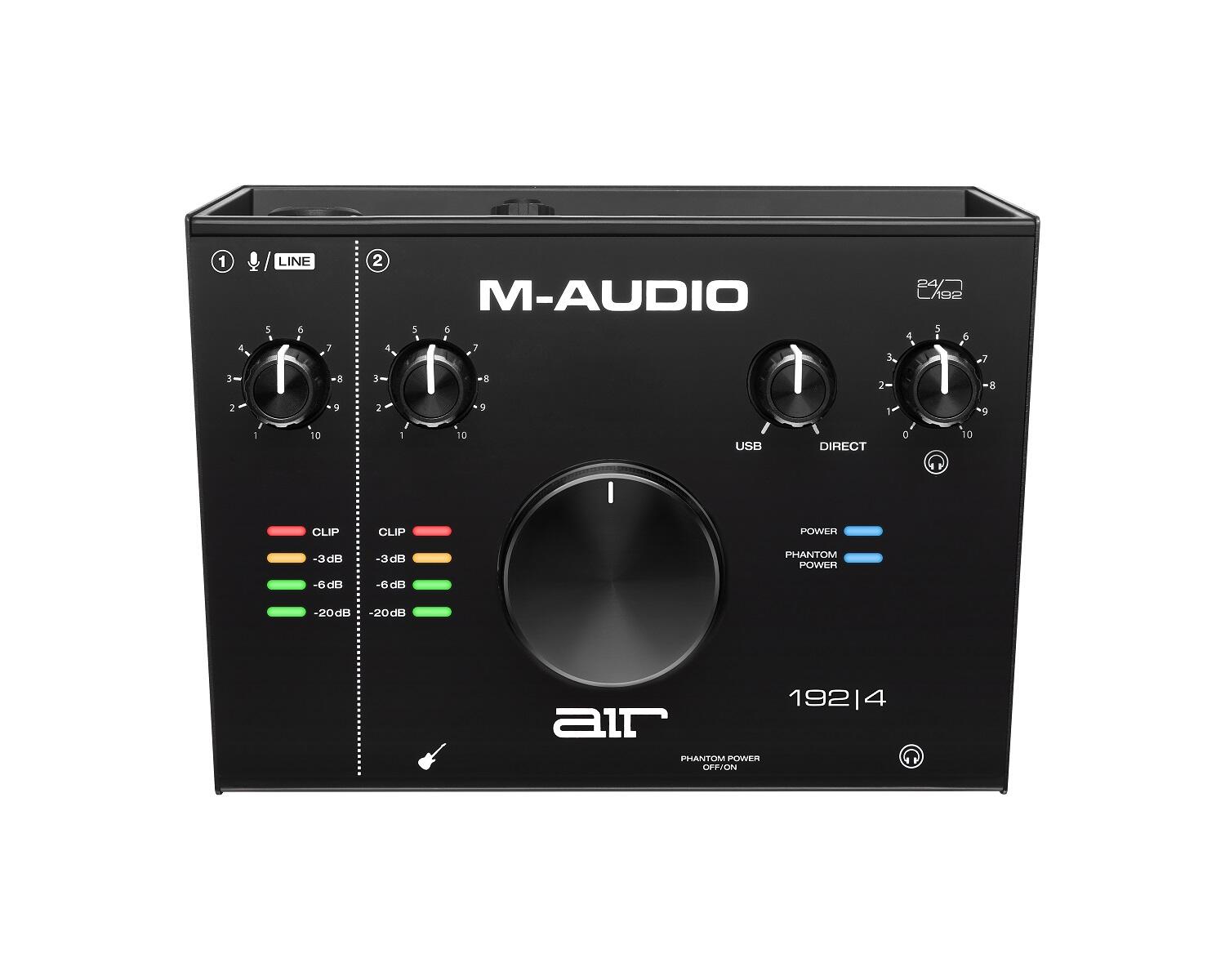

Key Features

24-bit/192kHz resolution for professional recording and monitoring
Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
VU LED meters for dialing in the perfect level
(1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available

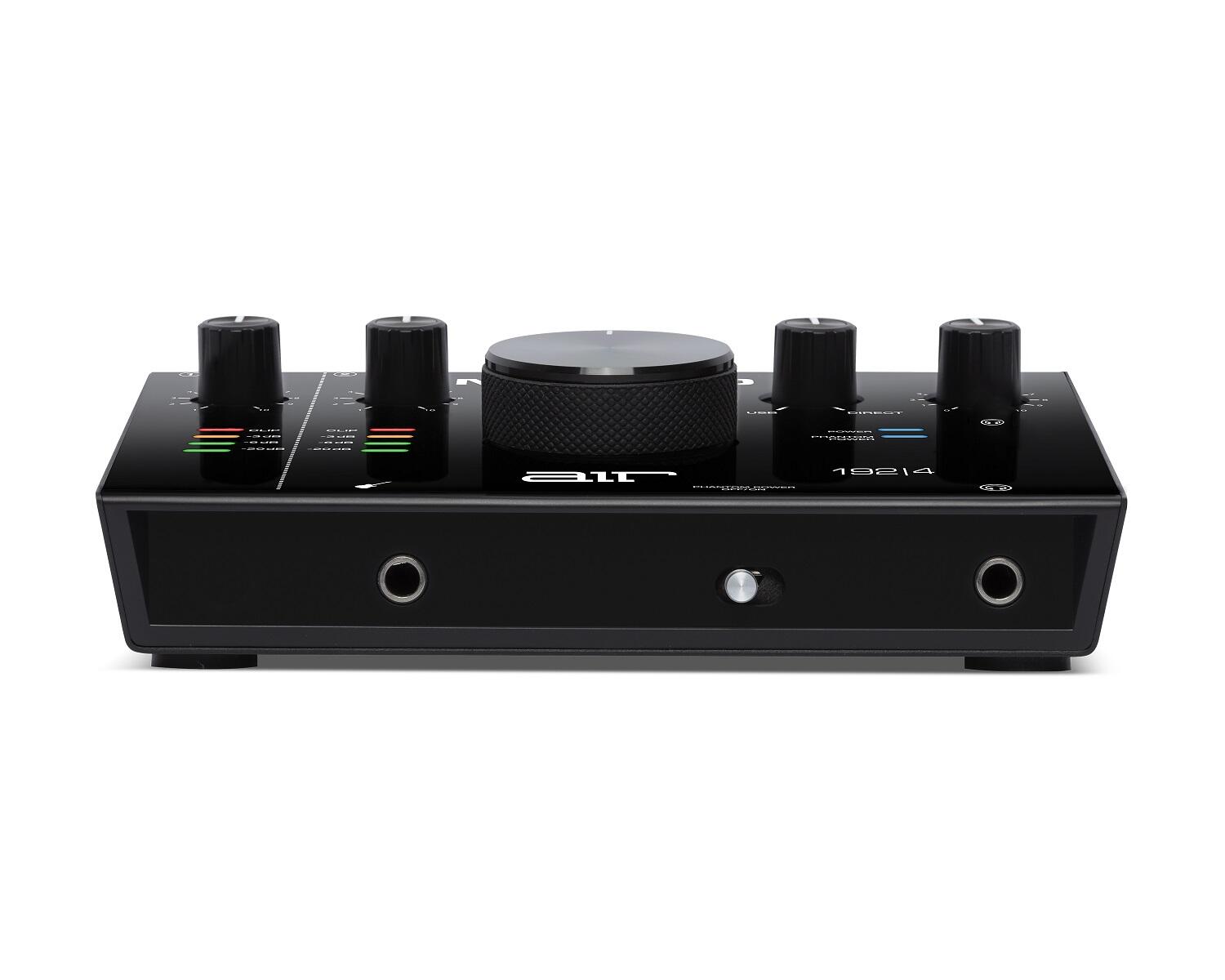

Stereo ¼” outs; ¼” headphone out with independent level control
Rugged metal chassis; large central control for easy volume adjustment
USB/Direct knob for balancing between the input signal and the computer signal
NOVA Black condenser microphone
HDH40 monitoring headphones

What’s In The Box

AIR 192|4
USB-C-to-USB-C Cable
USB-C-to-USB-A Cable
NOVA Black Microphone
Microphone Carrying Pouch

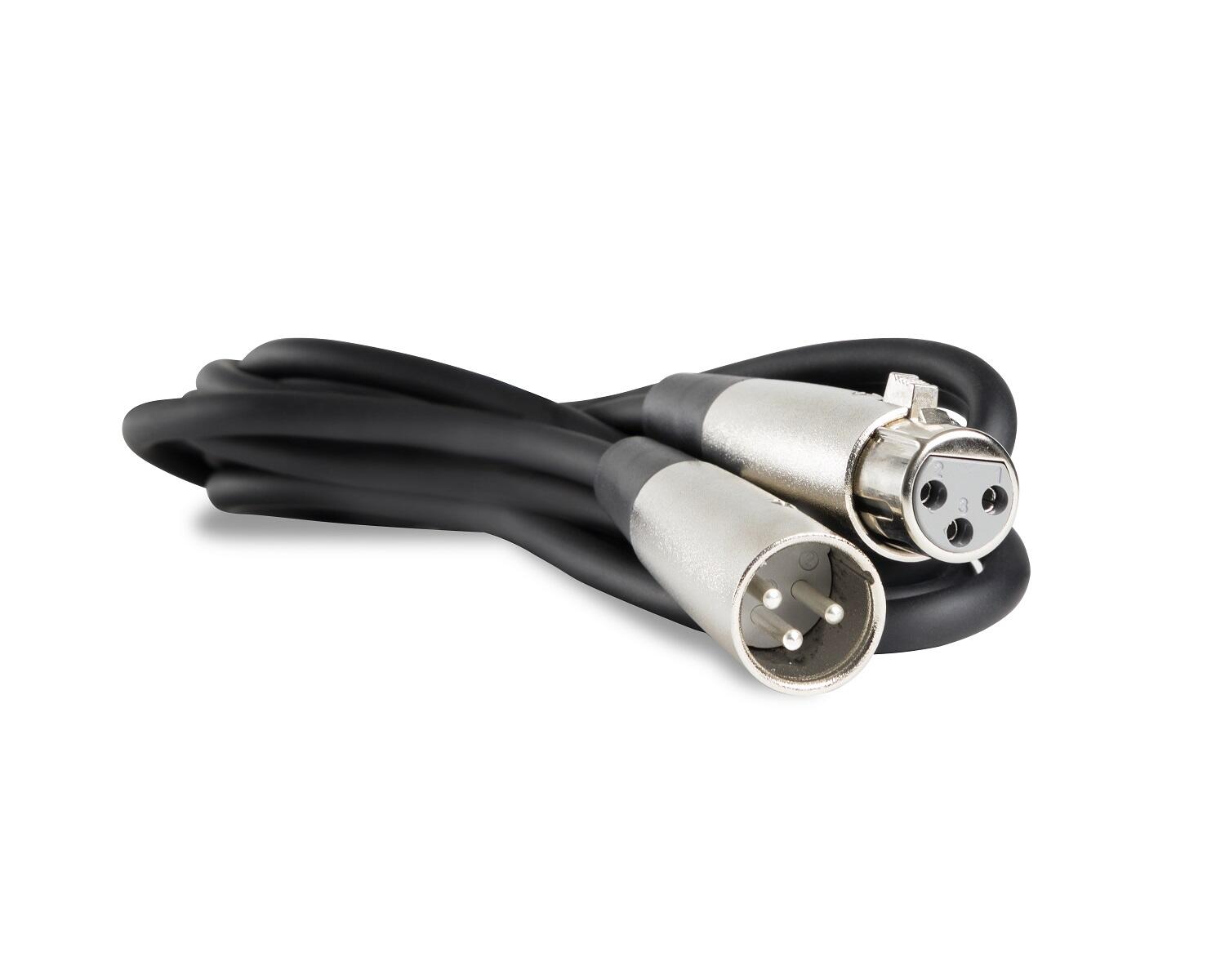

XLR Microphone Cable
Microphone Shock Mount
Microphone Windscreen
HDH40 Headphones
Software Download Cards
User Guide
Safety and Warranty Manual

Specifications

All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.

Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

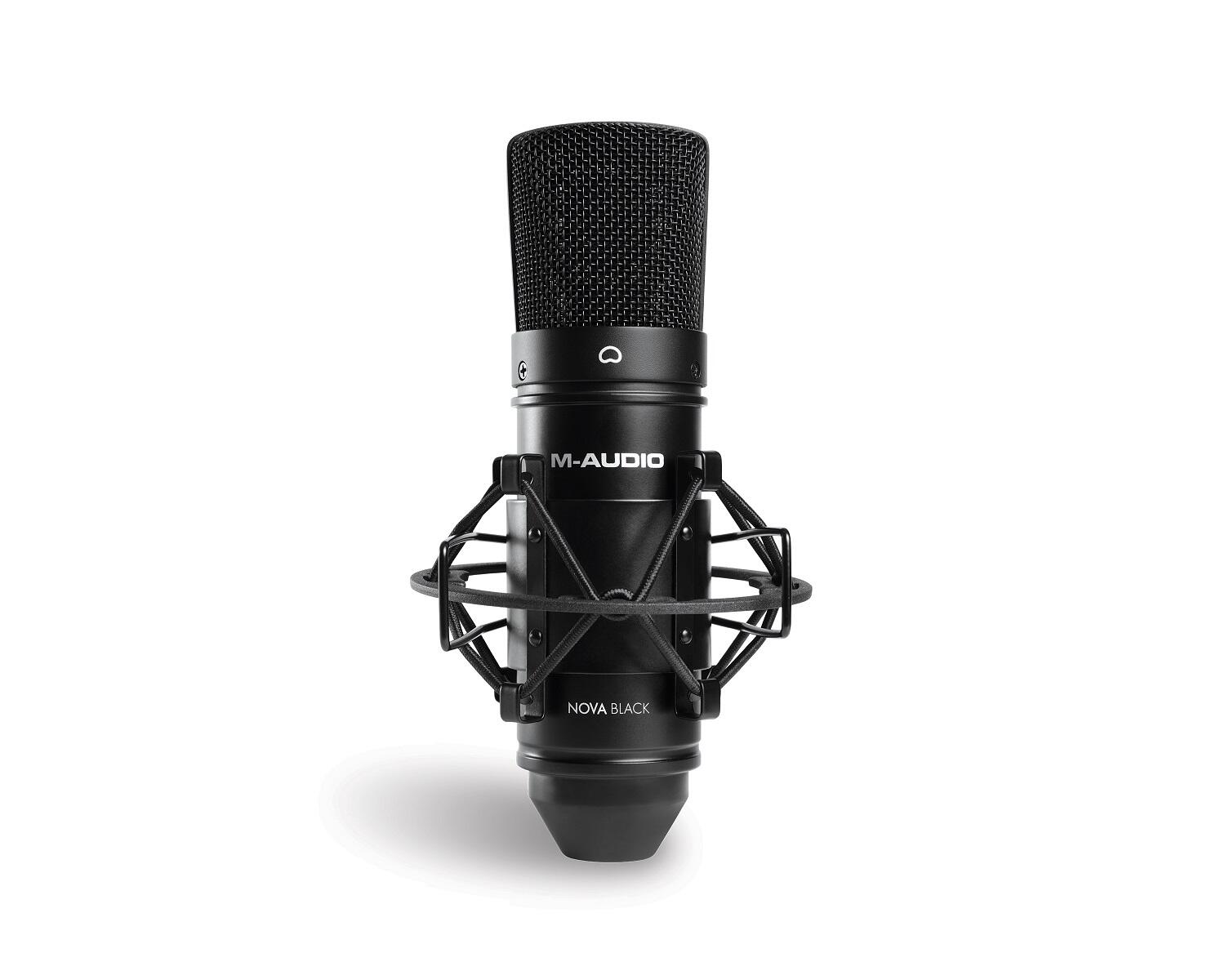

NOVA Black Microphone
TYPE	Back Electret condenser microphone
ELEMENT	18 mm pure aluminum diaphragm capsule
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	20 Hz – 20 kHz
SENSITIVITY	-38 dB (0 dB = 1 V/Pa @ 1 kHz)
RATED IMPEDANCE	200Ω
MAXIMUM SPL	136 dB
PHANTOM POWER REQUIRED	+48 V
S/N RATIO	77 dB
CURRENT CONSUMPTION	3 mA

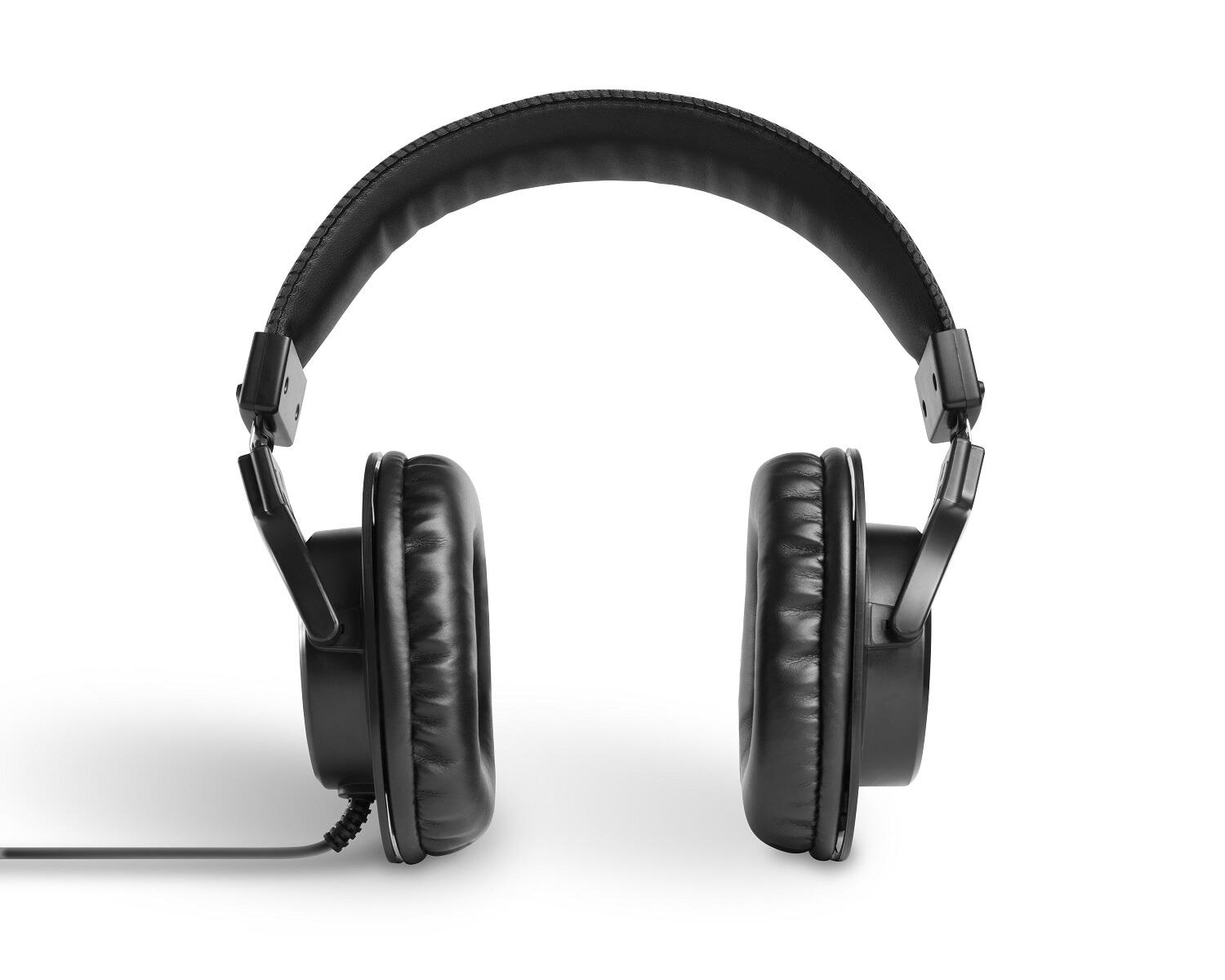

HDH40 Headphones
ACOUSTIC DESIGN	Dynamic, Closed
DRIVER	40 mm, neodymium
FREQUENCY RESPONSE	15 Hz – 22 kHz
SENSITIVITY	95 dB ±3 dB
RATED IMPEDANCE	32Ω
EARPAD	Leatherette
CABLE LENGTH	9.8 ft. / 3 m

Mic Input 1 (balanced XLR)
FREQUENCY RESPONSE	20 Hz – 20 kHz (+0.1 dB)
DYNAMIC RANGE	104 dB (A-weighted)
SIGNAL-TO-NOISE RATIO	104 dB (+1.0 dBu, A-weighted)
THD+N	0.003%
PREAMP EIN	-128 dBu (max gain, 150 Ω source, A-weighted)
MAX INPUT LEVEL	+1.5 dBu
GAIN RANGE	55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)
FREQUENCY RESPONSE	20 Hz – 20 kHz (+0.05 dB)
SIGNAL-TO-NOISE RATIO	101 dB (1 kHz, +4 dBu, A-weighted)
THD+N	0.003%
MAX INPUT LEVEL	16 dBu
GAIN RANGE	55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
FREQUENCY RESPONSE	20 Hz – 20 kHz (+0.05 dB)
DYNAMIC RANGE	100 dB (A-weighted)
SIGNAL-TO-NOISE RATIO	102 dB (+ 4 dBu, A-weighted)
THD+N	0.004%
MAX INPUT LEVEL	6 dBu
INPUT IMPEDANCE	1 MΩ
GAIN RANGE	24 dB

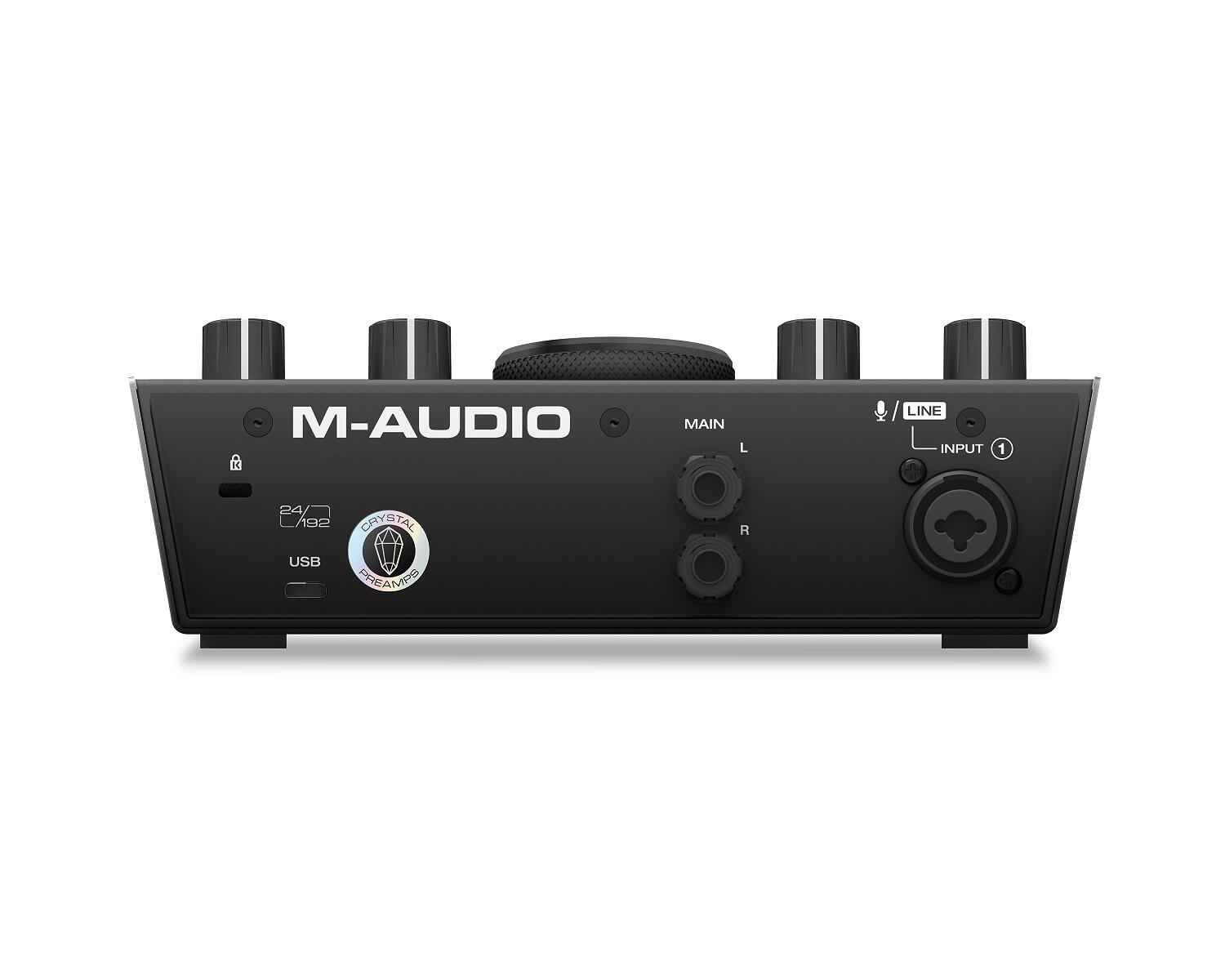

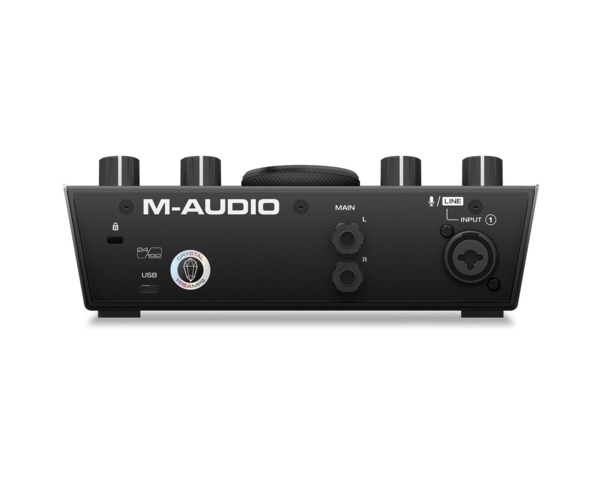

Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
FREQUENCY RESPONSE	20 Hz – 20 kHz (+0.06 dB)
DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO	102 dB (A-weighted)
THD+N	0.005%
MAX OUTPUT LEVEL	+7 dBu (1 kHz, -1 dBFS)

Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N	0.005%
OUTPUT IMPEDANCE	10 Ω

General
POWER	USB-bus-powered
DIMENSIONS (WIDTH X DEPTH X HEIGHT)	8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
WEIGHT	2.0 lbs. 0.9 kg
