Hammond SKX - Stage Keyboard **UDGÅET**
Hammond SKX - Stage Keyboard - Her har du mulighed for "drawbar" toner på de øverste tangenter og "grand piano" (flygel) på de nederste tangenter eller omvendt. Manuel bas og orgel på det nederste klaviatur og f.eks. horn på de øverste. Super fedt hammond orgel med dobbelt klaviatur - ligesom de gode gamle orgler. Selvfølgelig også med "the Pipe Organ voices". Nemt at tranportere med dobbelt 61 tangenter og med et fuldt set af "drawbars". SKX kan det hele!
• Octave
Digital Control allows flexibility of performance a Vintage Hammond is incapable of. You may independently raise or lower the Upper and Lower Manual's range by one octave, allowing greater comfort of playing.
• Pedal Sustain
A popular option for playing the Pedals or Manual Bass is Pedal Sustain, which allows the Pedal voice to smoothly decay upon release, much in the manner of a string bass.
• Manual Bass
Allows the PEDAL part to be played on the LOWER manual of the SKX.
You can choose from 3 modes: Lowest played note only/Chord/Root notes as discriminated by chord played.
• LOWER to PEDAL
Couples the LOWER manual registration to the PEDAL Part.
• Transpose
Allows you to shift the entire pitch of the keyboard to match singers, soloists and the other instruments, or to simplify key changes.
• Master Equalizer
Bass/Mid Gain/Mid Frequency/Treble
• Prochord
Certain Extra Voice instruments are enhanced with the ProChord™ function. This allows complex voicings to be played with one finger, based on chords played on the lower manual. 26 distinct chords are "parsed" by the ProChord™ function, with proper passing tones provided to insure proper enharmonic continuity.
• MIDI Master Keyboard
External Zones are available to enable the SKX to be used as a MIDI master keyboard. 3 on the Upper Keyboard, 2 on the Lower Keyboard, and 1 on the Pedal Clavier.
• USB Type "A" PORT
A USB Type "A" port is included, which is used for saving/loading setups, system updates, downloaded Extra Voice libraries, and the music player,. The Music Player allows WAV/MP3 audio files to be controlled and played through the SKX Audio Outputs.

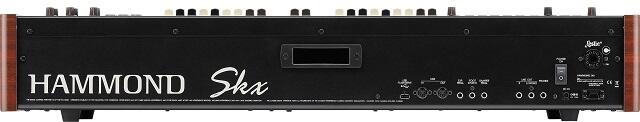

• Leslie 11 pin Jack
A standard 11-pin Leslie jack is included on the rear panel. Attaching a Leslie here disables the Digital Leslie effect from the output, and allows the Leslie Cabinet to respond to the onboard Leslie Controls. If the attached Leslie is a 1-channel Model, the EXTRAVOICE Division remains at the LINE OUT Jacks. (requiring an additional non-rotary keyboard amplifier such as the Leslie Model LS2215 or LS2012)
SKX ... in comparison | ||
SK2 | SKX | |
DRAWBARS | 9 Ptiches, Assignable for Upper, Pedal, Lower | Upper: 9 Pitches, Lower: 9 Pitches, Pedal: 2 Pitches |
EXTRA-VOICE | Control: Allocate Upper/Lower, Solo Group | Control: Upper On, Lower On, Group |
LESLIE-CONNECTION | 8-pin | 11-pin |
WEIGHT | 16,0 kg | 16,9 kg |
Specifications | |
SOUND GENERATOR | ORGAN SECTION: 2 Vase III as Digital Tone-Wheels, Transistor Organ and Pipe Organ, 61 polyphony (for manual, except Pipe Organ), 8 polyphony (for pedal, except Pipe Organ), 63 polyphony (maximum, on Pipe Organ) EXTRA VOICE SECTION: Vase III 63 polyphony (maximum) |
KEYBOARDS | 2 x C1 to C6 61-keys |
ORGAN SECTION | DRAWBARS: Upper: 9 Pitches, Lower: 9 Pitches, Pedal: 2 Pitches ORGAN TYPES: • Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe) • Pedal: 7 choices (Normal, Muted, Synth1, Synth2, Finger, Pick, Slap) TOUCH RESPONSE PERCUSSION: Buttons: On, Volume Soft, Fast Decay, Th ird Harmonic |
EXTRA VOICE SECTION | SECTIONS: 2 Sections for Manuals INSTRUMENTS: 6 Groups (A. Piano, E. Piano, Keyboard, Wind, Other, Library) • Upgradable via Library CONTROL: Upper On, Lower On, Group |
EFFECTS | VIBRATO AND CHORUS: Digital Scanner • Buttons: Upper On, Lower On OVERDRIVE: Digital, 4 programs • Control: On, Amount MULTI EFFECTS: 8 programs for Organ/Extra Voice individually • Control: On, Amount EQUALIZER: • for Organ: Bass, Mid (sweep), Treble, Tone • for Extra Voice: Bass, Mid (sweep), Treble INTERNAL LESLIE: Advanced Digital, 2 Rotors • Buttons: Bypass, Stop, Fast REVERB: Digital, 11 programs • Control: On, Depth MASTER EQUALIZER: Bass, Mid, Treble |
KEYMAP | BUTTONS: Manual Bass, Lower to Pedal, Octave Up, Octave Down, Lower, Transpose |
PATCHES | CAPACITY: 100 User Patches, 100 Preset Patches, Manual FAVORITES: 10 Banks, 10 Numbers PATCH LOAD OPTIONS: Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone, External Zone, Organ Effects, Animation, Exv Effects, Reverb |
CONTROLLERS | VOLUMES: Master Volume, Organ Volume, Extra Voice Volume, Extra Voice Balance SWITCH: Power On/Off |
MUSIC PLAYER | FILE FORMAT: WAV (44.1kHz, 16bit, Stereo), MP3 (44.1kHz, 128kbps, Stereo) |
STORAGE | USB Flash Drive |
DISPLAY | 20-Characters, 2-Lines |
MIDI | TEMPLATES: 4 Templates EXTERNAL ZONES: 3 Zones, assignable any keyboards |
CONNECTIONS | MIDI: In, Out AUDIO: Line Out L, R, Headphones LESLIE: 11-pin, 1 and 3 channels available OTHER: Foot Switch, Damper Pedal, Exp. Pedal, DC IN (12V) |
ACCESSORY | AC Adaptor AD3-1250-2P |
DIMENSIONS | 94,4cm(W) x 45,4cm(D) x 17,0cm(H) |
WEIGHT | 16.9Kg |
